This plugin enables the analysis of amplitude parameters from a centered surface profile, in compliance with ISO 21920. Prior to this analysis, the surface profile is filtered according to ISO 16610: Filtration standards, ensuring the separation of roughness parameters (Rx) from waviness components (Wx). This plugin enables the analysis of amplitude parameters from a centered surface profile, in compliance with ISO 21920. Prior to this analysis, the surface profile is filtered according to ISO 16610: Filtration standards, ensuring the separation of roughness parameters (Rx) from waviness components (Wx).

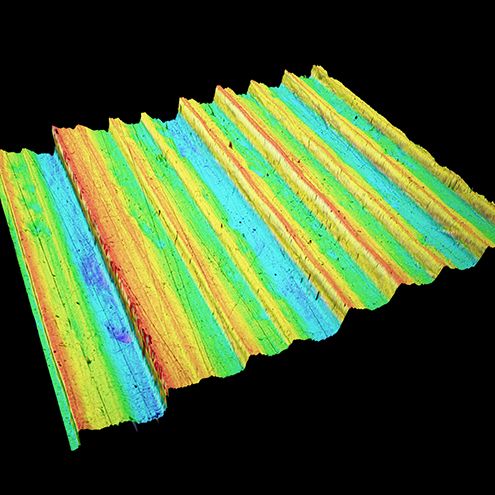

Surface texture profile

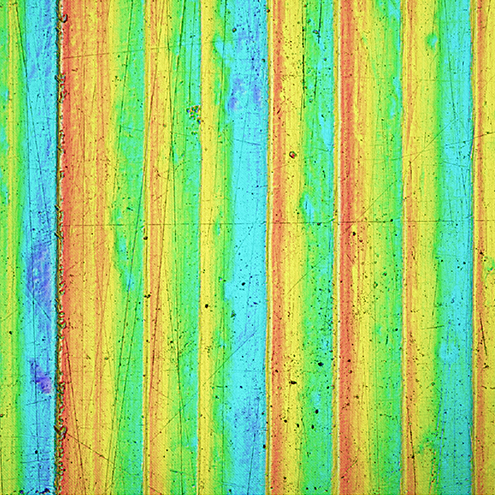

Surface texture profile
Parameters
Comments
Rp
Maximum peak height
Rv
Maximum valley depth
Rz
Maximum height
Rt
Total height of roughness profile
Rc
Mean height of profile elements
Ra
Arithmetic mean deviation
Rq
Root-mean-square deviation
Rsk
Skewness
Rku
Kurtosis
