Pad coplanarity

PCB

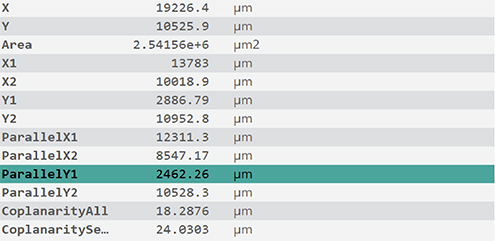

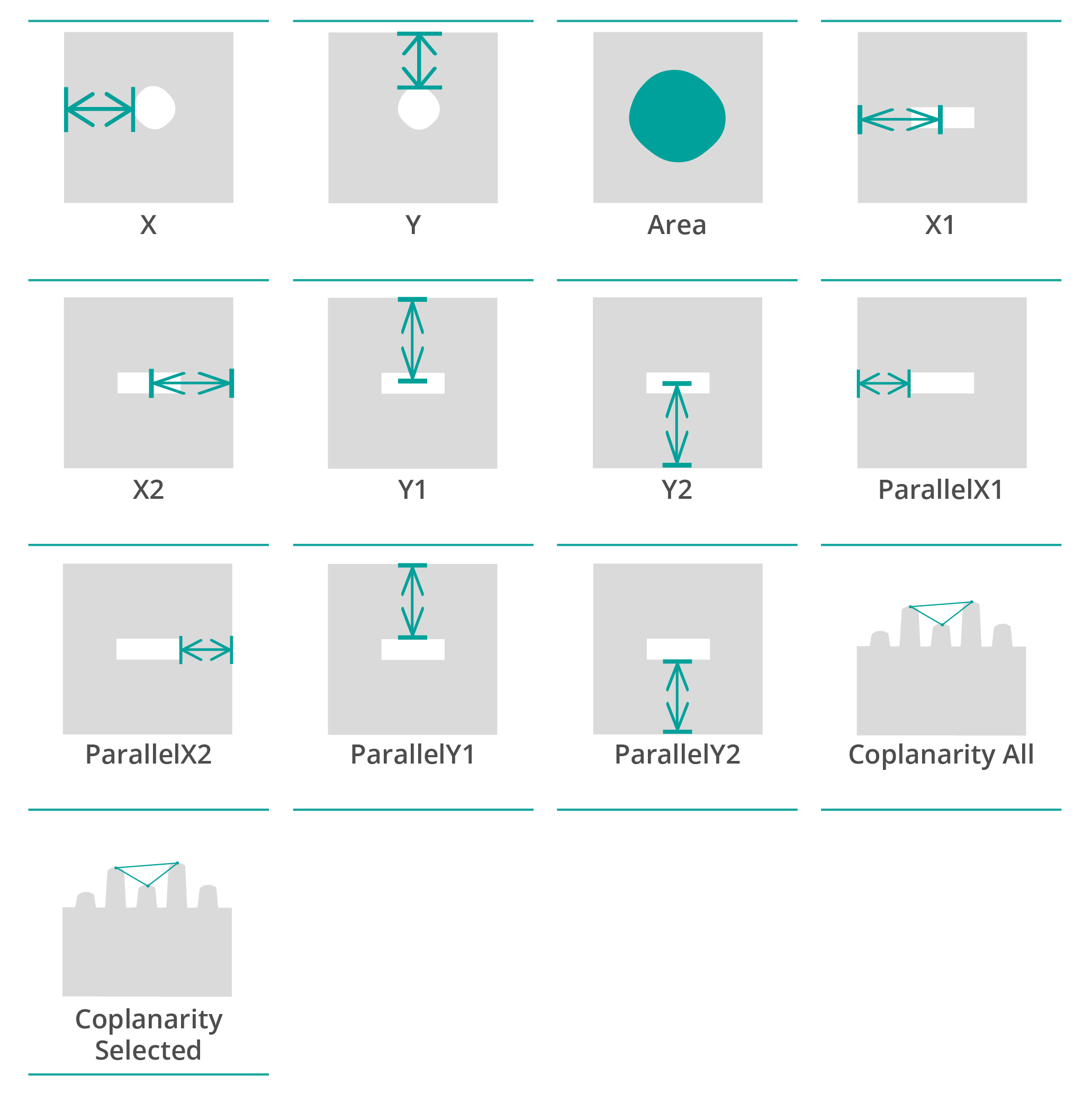

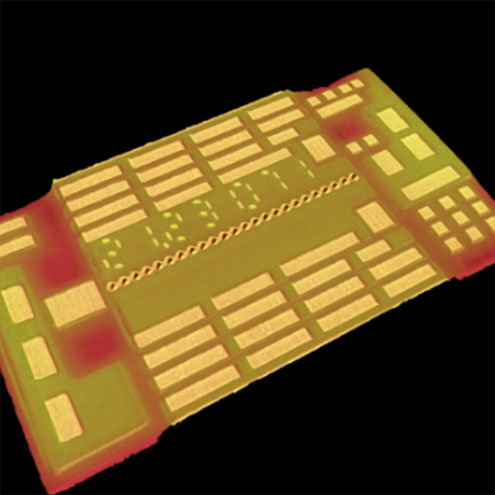

This plugin detects and analyzes all rectangular pads on a chip, providing data on their position, area, and coplanarity. Users can also select specific pads to calculate the coplanarity.
